VU Meter

£6.99

Available From



Short Description

The VU Meter is an excellent kit for those looking to add visuals to their project, whether it is showing audio volumes, sensor outputs, or battery voltages. This kit also comes with all resistors needed to make it logarithmic / linear, meaning you only need one kit.

Product Code (SKU)

VU-METER

RoHS & REACH Compliant

YES

Product Description

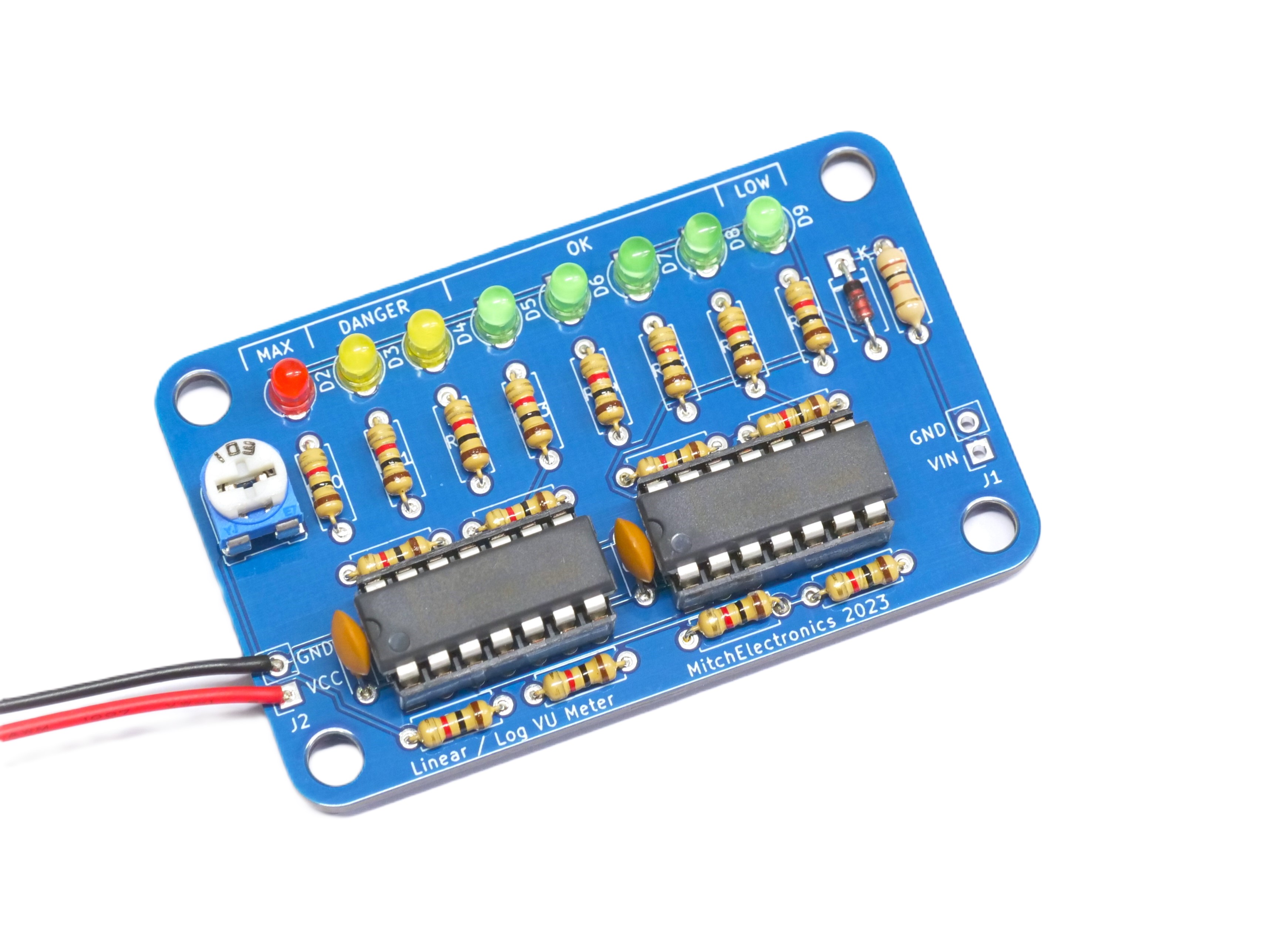

The MitchElectronics VU Meter kit, as the name suggests, is a VU meter that shows the size of a voltage as an LED bar. These are often seen in music equipment, whereby the relative amplitude of an audio source can quickly be seen, but they can be used in other applications including battery chargers and generic sensor readings.



Instructions/Documentation


VU Meter Instruction Manual
Electronics Construction Manual (PDF)



Product Specifics


  • Component Count : 43
  • Battery Powered? : Yes, 9V PP3
  • Operating Voltage : 3V to 16V
  • Operating Frequency : N/A
  • Output Voltage : N/A
  • Output Current : N/A
  • Dimensions (PCB) : xmm x xmm
  • Mounting Holes : Yes
  • Prebuilt : No – Kit form
  • Batteries Not Included

Included In This Kit


  • 2 x 14 DIP Socket
  • 2 x LM324
  • 2 x 100nF Capacitor
  • 1 x 100R Resistor
  • 16 x 1K Resistor
  • 1 x 1.5K Resistor
  • 1 x 2.2K Resistor
  • 1 x 4.7K Resistor
  • 1 x 15K Resistor
  • 1 x 22K Resistor
  • 1 x 47K Resistor
  • 1 x 100K Resistor
  • 1 x 10K Potentiometer
  • 5 x Green LED
  • 2 x Yellow LED
  • 1 x Red LED
  • 1 x 1N4148 Diode
  • 1 x Blue Wire
  • 1 x Black Wire
  • 1 x PP3


Applications

The VU Meter can be used in numerous applications thanks to its ability to be easily added to other projects. The most common project to use the VU meter in is anything audio related, and this would require the kit to be built with the logarithmic resistor values. For applications that involves linear signals, the VU meter can be built with the linear resistor values, and this can be used for sensor readings, battery charge levels, and so much more. Furthermore, the use of comparators, resistor ladders, and potentiometers makes this kit excellent for education, including GCSE and A-Level qualifications.



Notes

Note that product specifics such as output frequency depend on the tolerance of the components. The numbers provided here are an approximation only. Also take note that the estimated delivery is not guaranteed (unless special delivery is chosen) and free delivery has a maximum waiting time of two weeks. Any product that is returned which is built using lead solder is ineligible for a refund.

All parts sold by MitchElectronics are compliant with RoHS and REACH directives which ensure that they can be used in commercial environments as well as complying with environmental laws. Watch the video below to learn more about RoHS compliance and why it may be important for your next DIY project!
